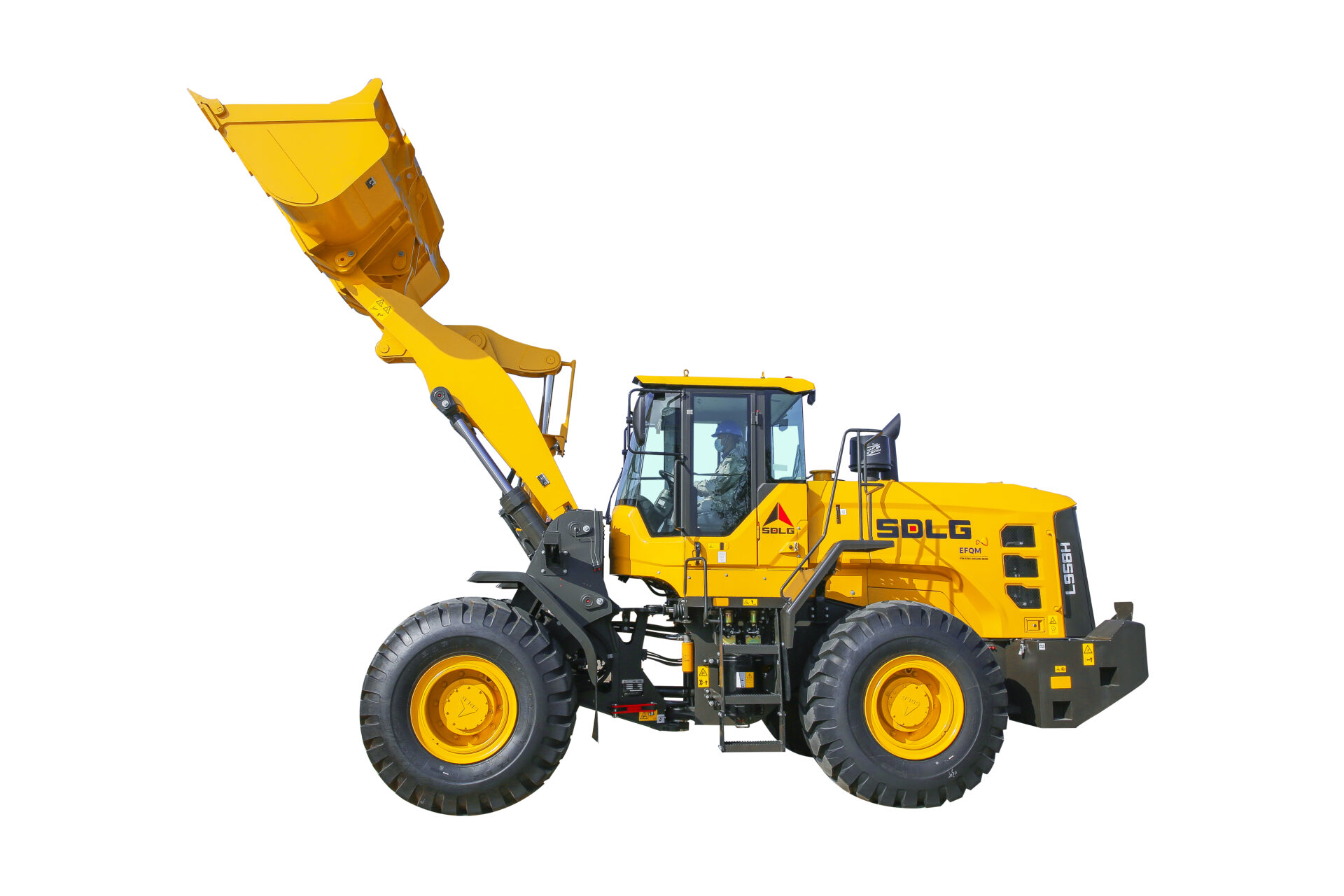

SDLG L958H Wheel Loader
Key Features
- 5.8-tonne rated load
- 3.5 m³ bucket capacity
- Powerful breakout force
- Load-sensing hydraulics
- Automatic transmission
- Comfortable H-Series cab
- Three power modes
- Easy maintenance access
- Durable construction
- Available in DB and WB configurations
| Specification | L958H DB | L958H WB |
|---|---|---|
| Configuration | Standard axle | Wet axle |
| Operating Weight | 17,600 kg | 18,000 kg |
| Rated Load | 5,800 kg | 5,800 kg |
| Bucket Capacity | 3.5 m³ | 3.5 m³ |
| Max. Breakout Force | 170 kN | 180 kN |
| Engine | BFM8-22T2 | BFM8-22T3 |
| Rated Power | 170 kW / 231 HP | 162 kW / 220 HP |
| Emission Standard | Stage II | Stage III |
| Axle | SDLG A515C / A515H | SDLG AL38W Wet Axle |
L958H DB
Standard Axle Configuration
The L958H DB is built for high-volume loading and demanding earthmoving applications. With powerful performance, durable construction and a 5.8-tonne rated load, it is well suited to construction, quarrying and aggregate operations.
L958H WB
Wet Axle Configuration
The L958H WB combines strong loading performance with an SDLG wet axle and wet braking system. Designed for demanding material-handling applications, it delivers dependable performance, durability and operator comfort.
Then finish with:
Ideal Applications
- Quarrying
- Mining support
- Heavy construction
- Aggregate handling
- Bulk material handling
